Step 8 – Install Walking Beam
New Parts needed for this step:
- Saddle bearing pin

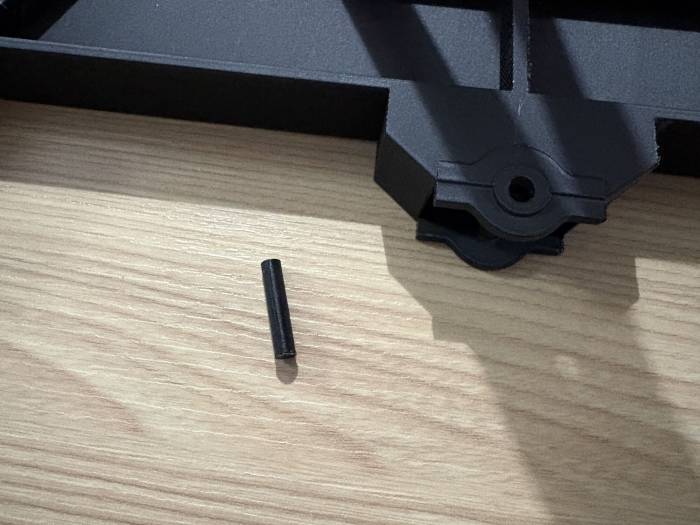

Step 8.1 – Identify the part
The saddle bearing pin is smaller than the equalizer pin but larger than the two equalizer arm pins.

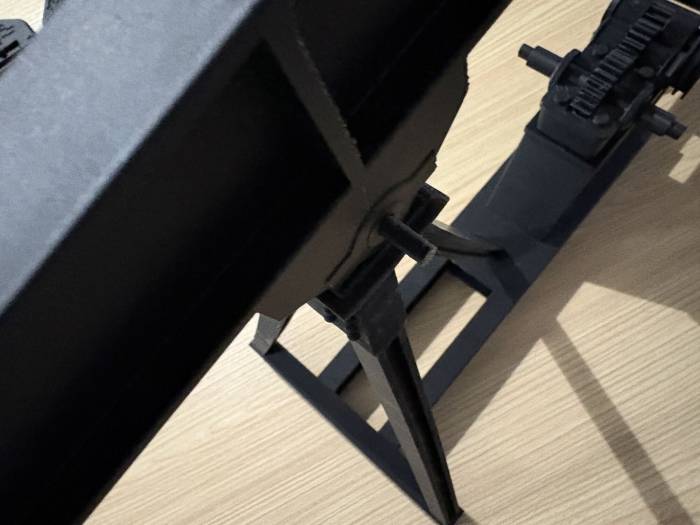

Step 8.2 – Walking beam install
Place the walking beam on the saddle bearing. Insert the saddle bearing pin.

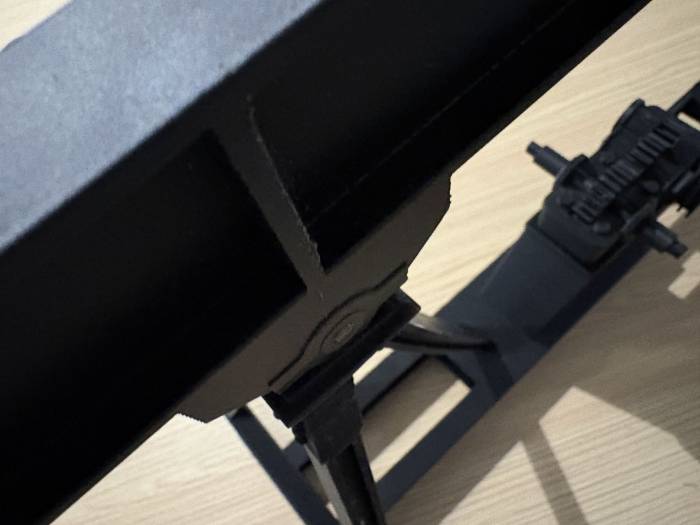

Step 8.3 – Completed step
