Step 7 – Install Horsehead
New Parts needed for this step:
- Horsehead
- Walking Beam

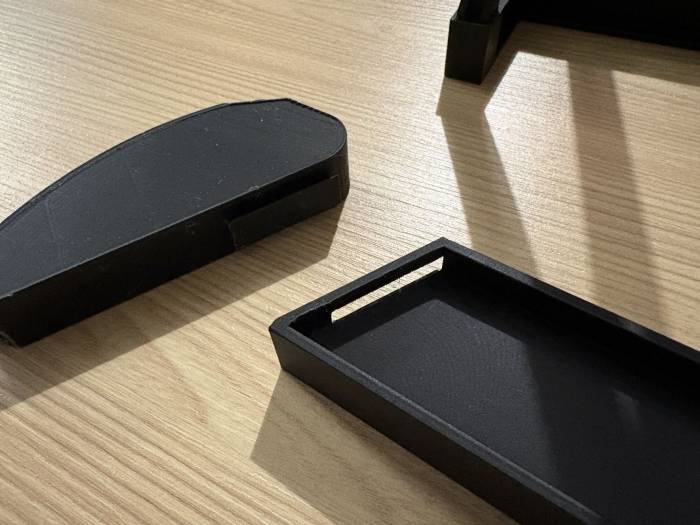

Step 7.1 – Identify parts
The horsehead is on the left and walking beam on the right.

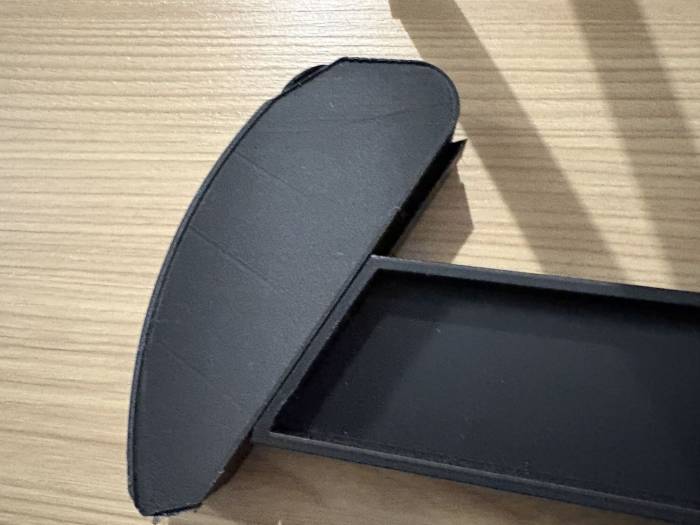

Step 7.2 – Horsehead Alignment
Position the horsehead as shown on the walking beam.

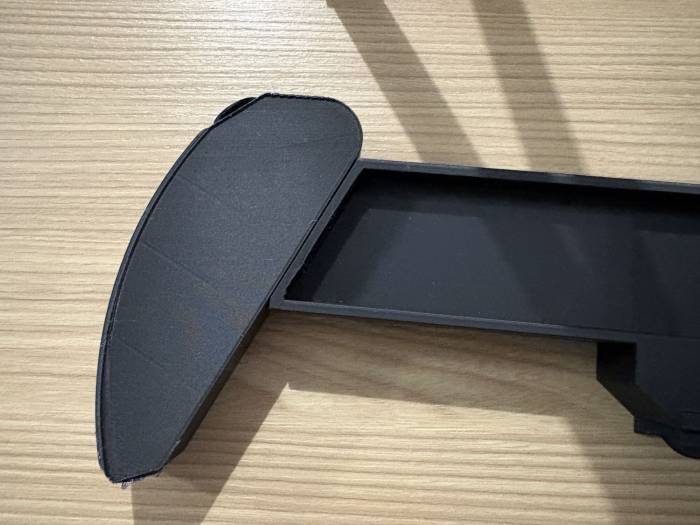

Step 7.3 – Slide Horsehead into position
