Step 14 – Install Motor Shaft
New Parts needed for this step:
- Motor Pulley
- Motor Shaft
- Hand Wheel
Step 14.1 – Identify parts

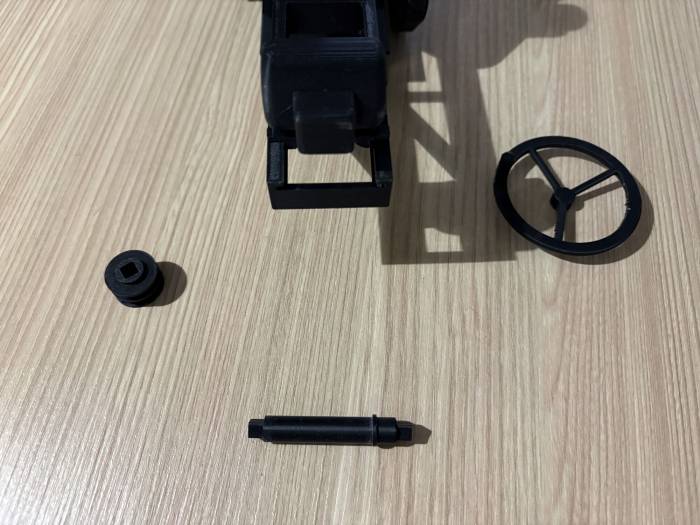

Parts from left to right are: Motor Pulley, Motor Shaft, and Hand Wheel.
Step 14.2 – Insert motor shaft

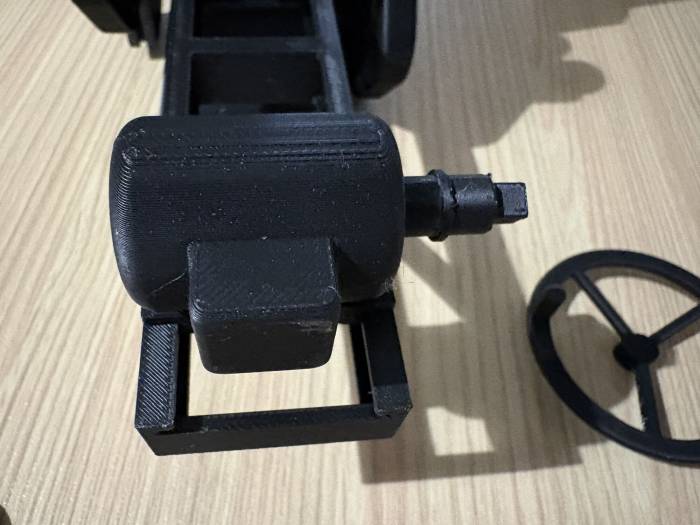

Insert the motor shaft as shown. The retaining ring should be on the right side.
Step 14.3 – Install pulley

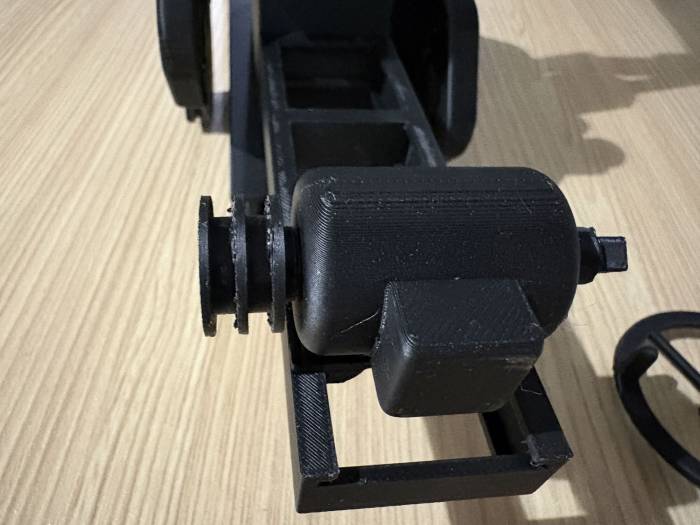

Install the pulley as shown.

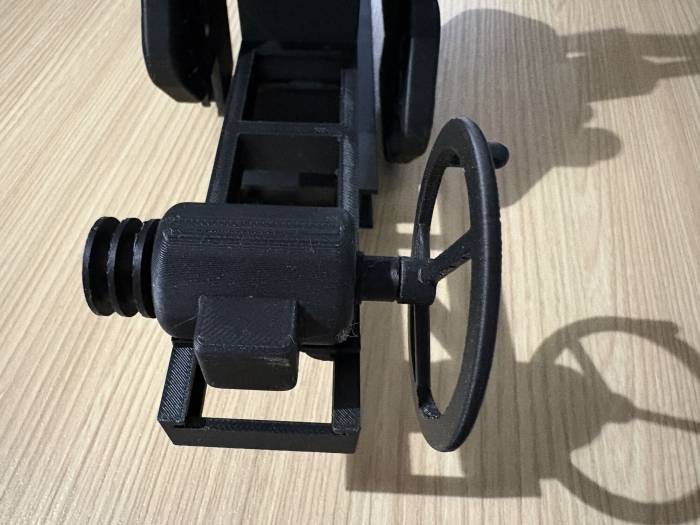

Step 14.4 – Install hand wheel
