Step 13 – Install Wrist Pin
New Parts needed for this step:
- Crank Pin (2)
Step 13.1 – Align crank and pitman arm
Rotate the crank and/or pitman arm to align the socket.

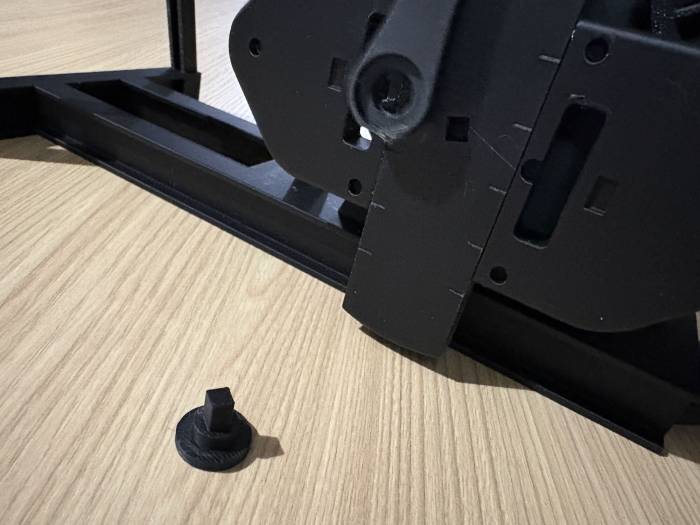

Step 13.2 – Insert crank pins
Rotate the crank pin through the pitman arm into the crank. You will likely need to rotate the crank pin until it fits into the crank socket.
Once both crank pins are installed, the weights and pitman should be able to rotate fairly easily.
