Step 11 – Install Weights
New Parts needed for this step:
- Crank (2)
- Weights (4)
Step 11.1 – Identify parts

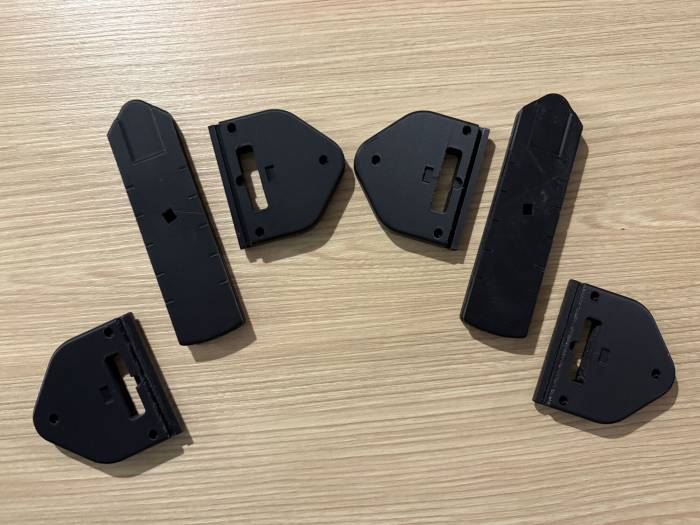

There are two cranks shown, each flanked by a weight on each side.
As concerns this step, the weights and cranks are bidirectional.
Step 11.2 – Insert weights

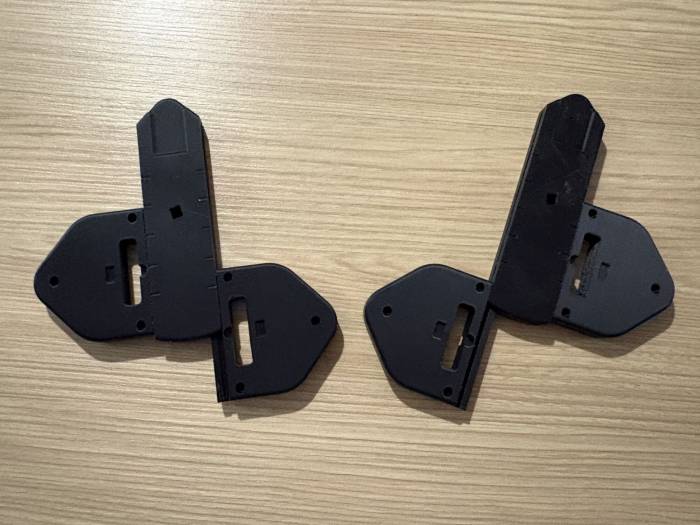

Insert one weight on each crank side.
Step 11.3 – Fully insert weights

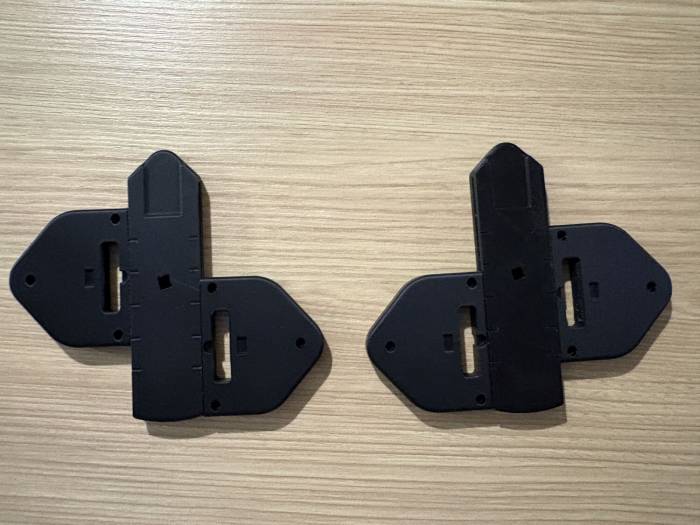

Fully insert the weights into each crank.
Weights are adjustable. Though not critical in the model, they are very important in balancing the unit. If the weights are not installed far enough onto the crank, as in real life, they will strike the ground.
