Step 1 – Install the Gearbox
New Parts needed for this step:
- Gearbox
- Reducer Base

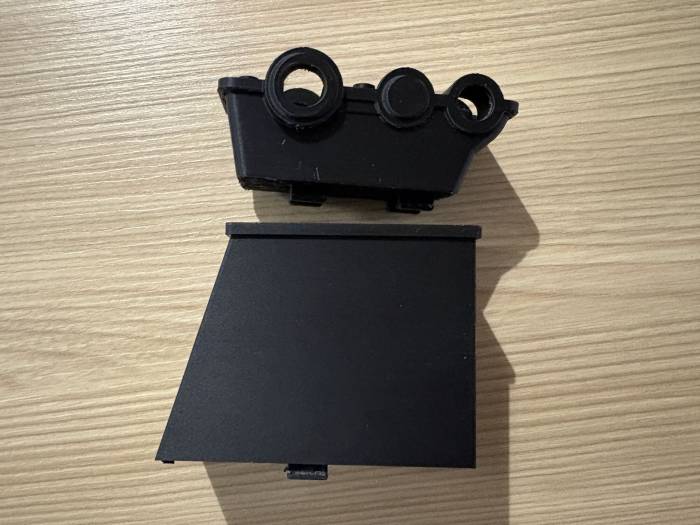

Step 1.1 – Position the Gearbox
Place the gearbox directly onto the reducer base.

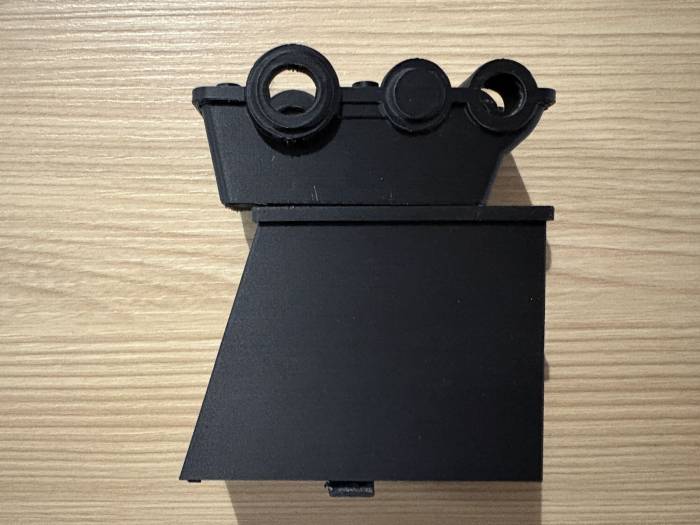

Step 1.2 – Align the Guide Rails
Ensure the gearbox rails align with the reducer base channels.
Step 1.3 – Slide to Lock
Push the gearbox straight to the right until it locks into place.
Be especially careful sliding the gear box. Horizontal twisting can break the rails.
